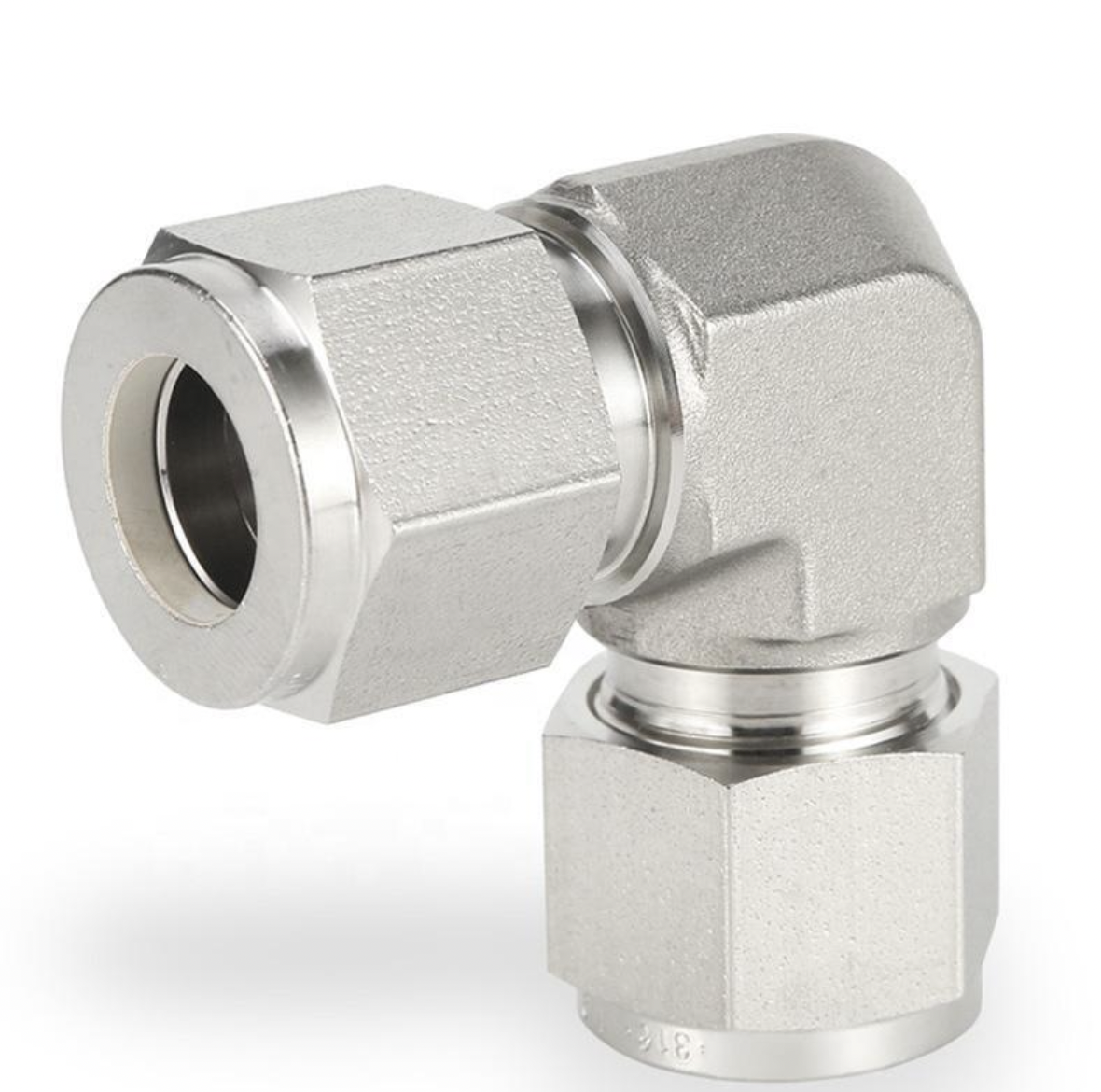

| Fractional Tube | ||||||
| T-Tube
0.D. (in.) |
Basic Ordering
Number |
Dimension, in(mm) | ||||
| L | C | D | F | E | ||
| 1/16 | -TUE-FT1 | 0.70(17.8) | 0.34(8.6) | 0.31(7.9) | 0.37(9.5) | 0.05(1.3) |
| 1/8 | -TUE-FT2 | 0.88(22.4) | 0.50(12.7) | 0.44(11.1) | 0.37(9.5) | 0.09(2.3) |
| 3/16 | -TUE-FT3 | 1.00(25.4) | 0.54(13.7) | 0.50(12.7) | 0.50(12.7) | 0.12(3.0) |
| 1/4 | -TUE-FT4 | 1.06(26.9) | 0.60(15.2) | 0.56(14.3) | 0.50(12.7) | 0.19(4.8) |
| 5/16 | -TUE-FT5 | 1.13(28.7) | 0.64(16.3) | 0.63(15.9) | 0.56(14.3) | 0.25(6.4) |
| 3/8 | -TUE-FT6 | 1.20(30.5) | 0.66(16.8) | 0.69(17.5) | 0.63(15.9) | 0.28(7.1) |
| 1/2 | -TUE-FT8 | 1.42(36.1) | 0.90(22.9) | 0.87(22.2) | 0.81(20.6) | 0.41(10.4) |
| 5/8 | -TUE-FT10 | 1.50(38.1) | 0.96(24.4) | 1.00(25.4) | 0.94(23.8) | 0.5(12.7) |
| 3/4 | -TUE-FT12 | 1.57(39.9) | 0.96(24.4) | 1.13(28.6) | 1.06(27.0) | 0.62(15.7) |
| 7/8 | -TUE-FT14 | 1.76(44.7) | 1.02(25.9) | 1.25(31.8) | 1.37(34.9) | 0.72(18.3) |
| 1 | -TUE-FT16 | 1.93(49.0) | 1.23(31.2) | 1.50(38.1) | 1.37(34.9) | 0.88(22.4) |
| 11/8 | -TUE-FT18 | 2.17(55.1) | 1.23(31.2) | 1.63(41.3) | 1.69(42.9) | 0.97(24.6) |
| 11/4 | -TUE-FT20 | 2.62(66.5) | 1.62(41.1) | 1.87(47.6) | 1.69(42.9) | 1.09(27.7) |
| 11/2 | -TUE-FT24 | 3.07(78.0) | 1.97(50.0) | 2.25(57.2) | 2.00(50.8) | 1.34(34.0) |
| 2 | -TUE-FT32 | 4.22(107.2) | 2.66(67.6 | 3.00(76.2) | 2.75(70.0) | 1.81(46.0) |
| Metric Tube | ||||||
| T-Tube
0.D. (mm) |
Basic Ordering
Number |
Dimension, mm(in.) | ||||
| L | C | D | F | E | ||
| 3 | -TUE-MT3 | 22.3(0.88) | 12.9(0.51) | 12.0(0.47) | 9.5(0.37) | 2.4(0.09) |
| 4 | -TUE-MT4 | 25.4(1.00) | 13.7(0.54) | 12.0(0.47) | 12.7(0.50) | 2.4(0.09) |
| 6 | -TUE-MT6 | 27.0(1.06) | 15.3(0.60) | 14.0(0.55) | 12.7(0.50) | 4.8(0.19) |
| 8 | -TUE-MT8 | 28.8(1.13) | 16.2(0.64) | 16.0(0.63) | 14.3(0.56) | 6.4(0.25) |
| 10 | -TUE-MT10 | 31.5(1.24) | 17.2(0.68) | 19.0(0.75) | 17.5(0.69) | 7.9(0.31) |
| 12 | -TUE-MT12 | 36.0(1.42) | 22.8(0.90) | 22.0(0.87) | 20.6(0.81) | 9.5(0.37) |
| 14 | -TUE-MT14 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 11.0(0.43) |
| 15 | -TUE-MT15 | 38.8(1.53) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 11.9(0.47) |
| 16 | -TUE-MT16 | 38.0(1.50) | 24.4(0.96) | 25.0(0.98) | 23.8(0.94) | 12.7(0.50) |
| 18 | -TUE-MT18 | 39.8(1.57) | 24.4(0.96) | 30.0(1.18) | 27.0(1.06) | 15.1(0.59) |
| 20 | -TUE-MT20 | 44.6(1.76 | 26.0(1.02) | 32.0(1.26) | 34.9(1.37) | 15.9(0.63) |
| 22 | -TUE-MT22 | 44.6(1.76) | 26.0(1.02) | 32.0(1.26) | 34.9(1.37) | 18.3(0.72) |
| 25 | -TUE-MT25 | 49.1(1.93) | 31.3(1.23) | 38.0(1.5) | 34.9(1.37) | 21.8(0.86) |
| 28 | -TUE-MT28 | 64.0(2.52) | 36.6(1.44) | 46.0(1.81) | 42.9(1.69) | 21.8(0.86) |
| 30 | -TUE-MT30 | 69.9(2.75) | 39.6(1.56) | 50.0(1.97) | 42.9(1.69) | 26.2(1.03) |
| 32 | -TUE-MT32 | 72.3(2.85) | 42.0(1.65) | 50.0(1.97) | 42.9(1.69) | 28.6(1.13) |
| 38 | -TUE-MT38 | 84.0(3.31) | 49.4(1.94) | 60.0(2.36) | 50.8(2.00) | 33.7(1.33) |
| 50 | -TUE-MT50 | 106.0(4.17) | 67.6(2.66) | 75.0(2.95) | 70.0(2.75) | 46.0(1.81) |
