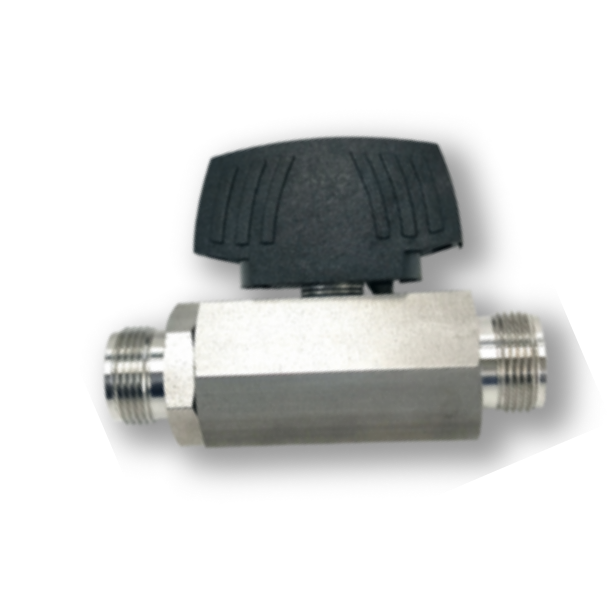

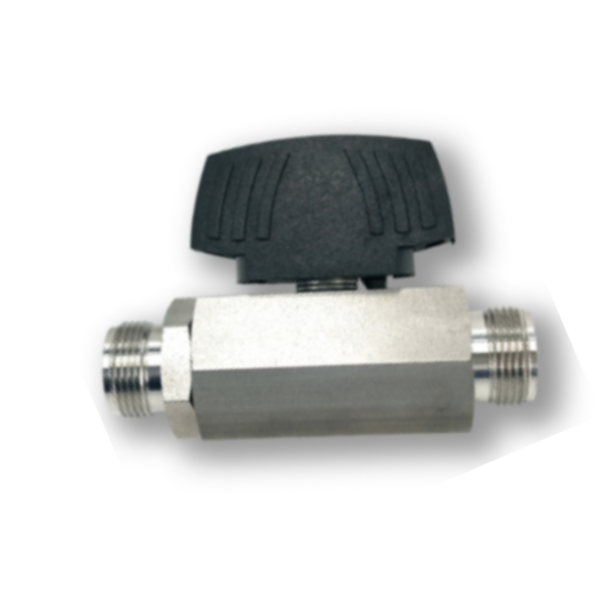

Hex Bar Stock Ball Valves
HBS Series (1000 psig)
HBF Series（2000 psig）
◎ Compact and economical design.
◎ Free floating ball design for seat wear compensation.
◎ Bi-directional flow.
◎ Low operating torque.
◎ Any reasonable connections available.
◎ Options for handle color.
◎ Leak-tight performance testing for every valve at the maximum working pressure with nitrogen.
◎ Maximum working pressure:
HBS Series（PTFE）： 1000 psig (69 bar)
HBF Series（PFA）： 2000 psig (138 bar)
◎ Working temperature:
HBS Series: -20℉ to 450℉ (-28℃ to 232℃)
HBF Series: -65℉ to 400℉ (-54℃ to 204℃)
